Product Description

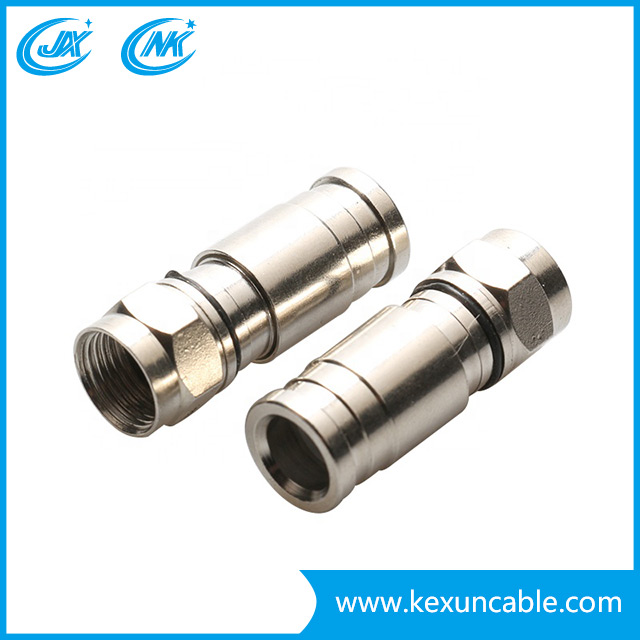

RG59 Coaxial Cable with F-Connector
1 Construction:
(1)Center Conductor: 0.81±0.02mm BC
(2)Dielectric: 3.66±0.10mm FPE
(3)Braid: Al Foil + 96*0.12mm Al/Mg
(4)Jacket: 6.10±0.20mm PVC +F-Connector
2 Options:
Inner Conductor: | BC/CCS/CCA/TC/SC Available |
Dielectric: | Foam PE/Solid PE |
First Shield: | Foil:Copper/ Aluminum Foil,(Un-bonded,Bonded,Double bonded, double un-bonded, Copper colored ) |
Second Shield: | Al,CCA,BC,TC CCS Available Wire Diameter:0.11,0.12,0.15,0.16mm Available Braiding Net:32#,48#,64#,80#,96#,112#,128#,144# |
Jacket: | PVC/PE (black,white,color) |
3 Characteristics
Impedance: | 75+3 Ohm |
Capacitance: | 53+3pF/m |
Velocity of Propagation: | 85% |
Return Loss: | 20dB min (5-2300MHz) |
4 Attenuation:
Frequency (MHz) | Maximum (dB/100 m) |
5 | 2.82 |
55 | 6.73 |
187 | 11.81 |
350 | 15.75 |
550 | 19.52 |
750 | 22.87 |
865 | 24.67 |
1000 | 26.64 |
1450 | 32.05 |
1800 | 35.59 |
2000 | 39.04 |
Note:BC:Bare Copper CCS:Copper Clad Steel CCA:Copper Clad Aluminum TC :Tinning Copper
SC:Silver-Plated Copper
Any specification can be designed according to your requirement.
5 About us:
6 Our Packing:
(1)Packing Lengths:100/roll,200 m/roll, 300m/roll. 305m/roll (10m,15m,20m,25,30m,50m,100m)
(2)Inner Packing: Wooden reel, plastic reel,paper reel,and gift box
(3)Outer Packing: Carton box, pully box, pallet available
Note:Any packing available according to your request.
7 Our main product:
75ohm Series Coaxial Cable Specifications: RG6,RG,59,RG7,RG11
50ohm Series Coaxial Cable Specification:
RG58,RG8,RG213,3D-FB,5D-FB,7D-FB,8D-FB,PLMR-200,
PLMR-240, PLMR-300, PLMR-400
Monitor Cable:RG59+2DC,RG6+2DC
Security Cable:RVB,RVV
Lan Cable:UTP/FTP CAT5,CAT5e, UTP/FTP CAT6,CAT6e
8 FAQ:
(1)Q: Are you a manufacturer or a trading company?
A: We are a professional cable manufacturer with 27 years production experience.
(2)Q: Can you print our logo or company name in cable?
A: Yes,we can print your logo or company name on products.
(3)Q:Can you accept customize or design for us?
A: Yes, all communication cables are customized in our own factory and we can design for you according to your requirement.
(4)Q:Is it possible to get a free sample ?
A: Yes, samples are free,and shipping cost have to be paid by your esteemed company. But we will return the sample cost to you when we receiving your initial order.
(5)Q:What is your MOQ ?
A: Usually,our coaxial cable MOQ is 100 thousand meters.
(6)Q:If I want to purchase,how to pay?
A: Usually, we do T/T in 30% deposit before production,70% balance against copy of B/L. Also payment terms are negotiable depending on customer's request.
Note: Welcome to visit our factory and get our samples.
Your inquiry will be answered within 24 hours .
If you are interest in any our products,please do not hesitate to contact us ,we will do our best for you.
