Foshan Kexun Cable Industrial Co., Ltd.

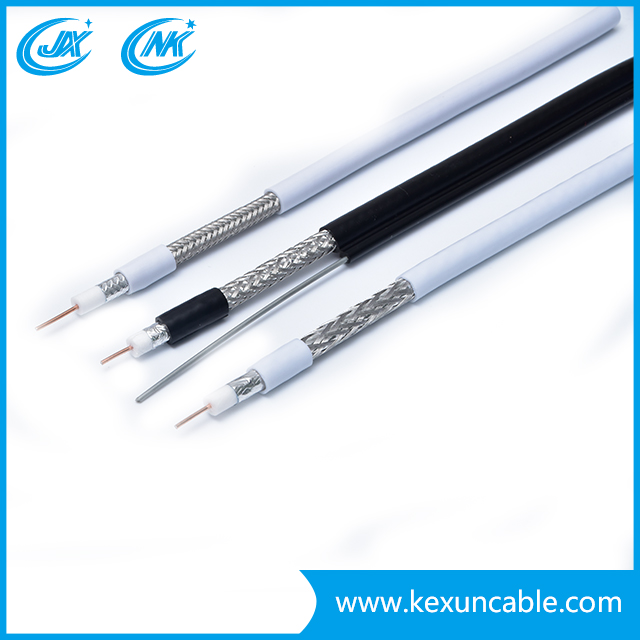

RG6
KEXUN , NEW KING, OEM
| Availability: | |
|---|---|
Product Description
(1)Center Conductor: 1.02±0.02mm BC
(2)Dielectric: 4.57±0.10mm FPE
(3)Braid: 112*0.16mm Al/Mg+Additional Alumimum Foil Shield+Additional Alumimum Braided Shield
(4)Jacket: 6.80±0.20mm PVC
| Inner Conductor: | BC/CCS/CCA/TC/SC Available |
| Dielectric: | Foam PE/Solid PE |
| First Shield: | Foil:Copper/ Aluminum Foil,(Un-bonded,Bonded,Double bonded, double un-bonded, Copper colored ) |
| Second Shield: | Al,CCA,BC,TC CCS Available Wire Diameter:0.11,0.12,0.15,0.16mm Available Braiding Net:32#,48#,64#,80#,96#,112#,128#,144# |
| Jacket: | PVC/PE (black,white,color) |
| Impedance: | 75+3 Ohm |
| Capacitance: | 53+3pF/m |
| Velocity of Propagation: | 85% |
| Return Loss: | 20dB min (5-2300MHz) |
| Frequency (MHz) | Maximum (dB/100 m) |
| 5 | 1.90 |
| 55 | 5.25 |
| 187 | 9.35 |
| 350 | 12.63 |
| 550 | 16.08 |
| 750 | 18.54 |
| 865 | 20.01 |
| 1000 | 21.49 |
| 1450 | 26.37 |
| 1800 | 30.34 |
| 2000 | 31.82 |
Note:BC:Bare Copper CCS:Copper Clad Steel CCA:Copper Clad Aluminum TC :Tinning Copper
SC:Silver-Plated Copper
Any specification can be designed according to your requirement.
Lan Cable:UTP/FTP CAT5,CAT5e, UTP/FTP CAT6,CAT6e
