RG6 Coaxial Cable

Product Details

Overview

Place of Origin :  Foshan , China                                                                                   Brand Name : KEXUN , NEW KING

Model Number : RG6 Coaxial Cable                                                                             Number of Conductors : 1

Type : Coaxial                                                                                                                Model : RG6

Certification : CE/RoHS                                                                                                 Inner Conductor : 1.02 Bare Copper / CCS

Dielectric : 4.57- 4.80mm FPE                                                                                      Out Conductor : Al Foil +70%, 90%, 95% Braid

Braid Material : Al-Mg, CCA, BC, TC                                                                            Out Jacket : 6.80 - 7.0mm PVC/PE

Color : White, Black or Customized                                                                               Connector : Fconnecor or BNC



Supply Ability

Supply Ability : 500 Million Meters per Year, 130 Million Meters per Day


Packaging & Delivery


  Packaging Details :Can be packed in clarity film, several rolls into one carton.

  Port :Foshan


Construction & Performance
ConstructionConductorMaterialCopper Clad Steel
Diameter(mm)1.0±0.02
InsulationMaterialFoaming PE
Diameter(mm)4.80±0.10
Outer ShieldMaterialAL foil+AL/mg wire braiding
Density61%
Diameter(mm)5.40±0.10
PerformanceMinimum Bending Radiusmm34(indoor)
Minimum Bending Temperature-10
Storage Temperature-10~+75
Installation Temperature-10~+50
Operating Temperature-10~+75
Electrical Properties
CapacitancepF/m45±2
Velocity%86
Insulation ResistanceMΩ·km>5000
Cut-off FrequencyGHz3.0
Insulation withstand VoltageKV1.0
Jacket Spark VoltageKV2.0
Attenuation (dB/100m)50MHz≤9.0
100MHz≤10.8
200MHz≤11.8
800MHz≤19.00
1000MHz≤20.0
Shielding Effectiveness (dB)55MHz≥55
300MHz≥60
1000MHz≥65
Return Loss (dB)5~470MHz≥20
470~862MHz≥20
862~2200MHz≥18

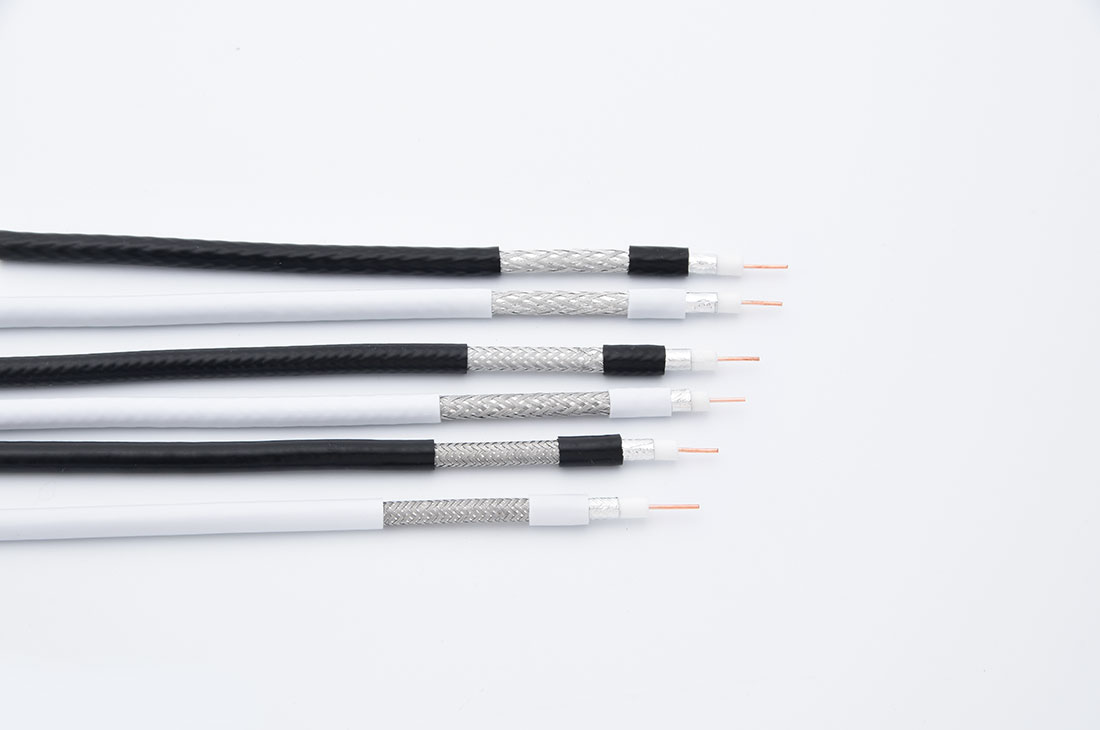

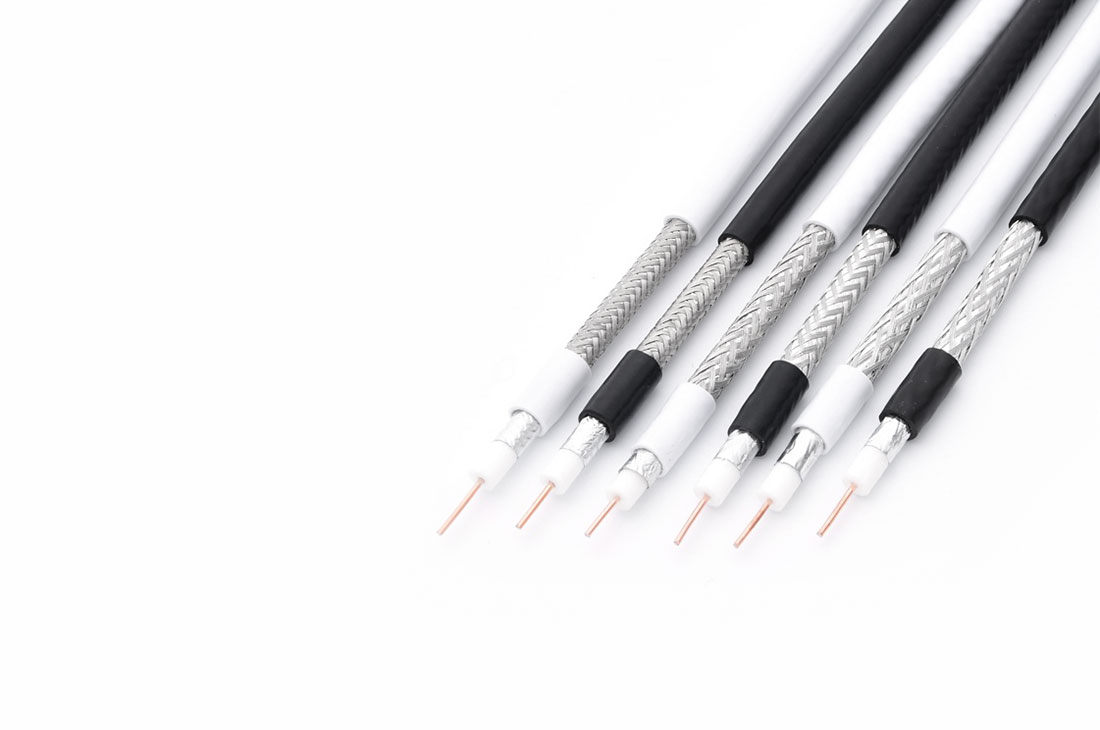

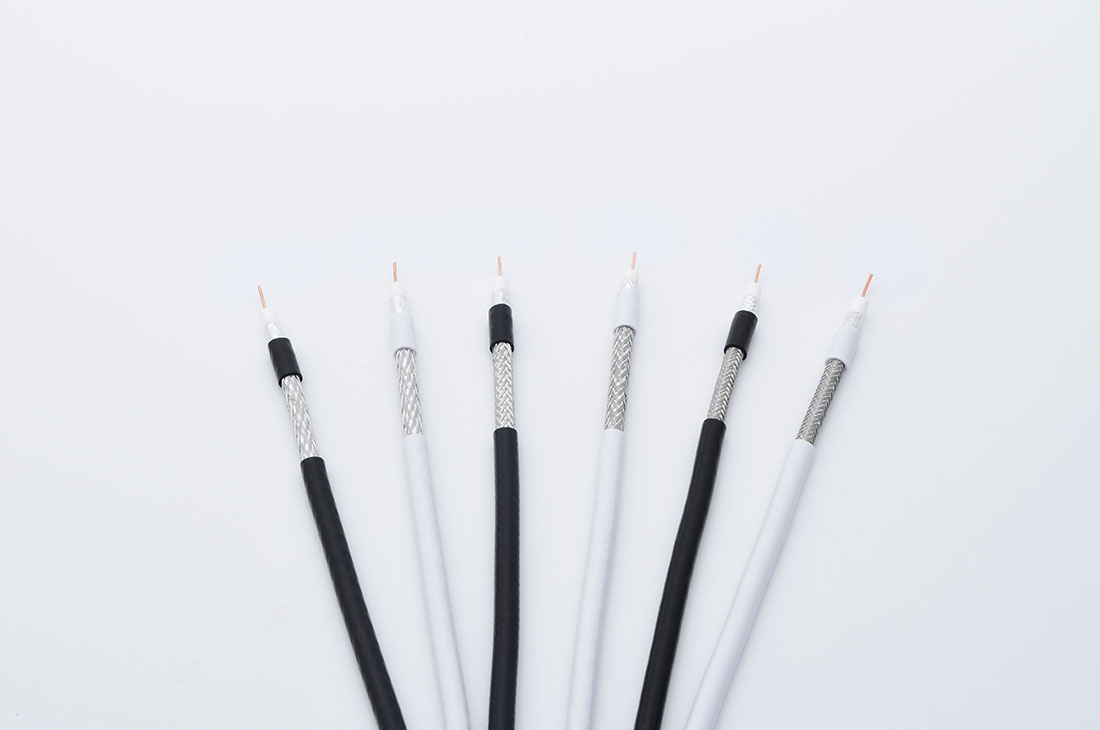

Product shows

undefined


undefined


undefined


Company Profile




Our Packing

(1)Packing Lengths:100/roll,200 m/roll, 300m/roll. 305m/roll (10m,15m,20m,25,30m,50m,100m)
(2)Inner Packing: Wooden reel, plastic reel,paper reel,and gift box
(3)Outer Packing: Carton box, pully box, pallet available
Note:Any packing available according to your request.




Our main product:

75ohm Series Coaxial Cable Specifications: RG6,RG,59,RG7,RG11
50ohm Series Coaxial Cable Specification:
RG58,RG8,RG213,3D-FB,5D-FB,7D-FB,8D-FB,PLMR-200,
PLMR-240, PLMR-300, PLMR-400
Monitor Cable:RG59+2DC,RG6+2DC
Security Cable:RVB,RVV
Lan Cable:UTP/FTP CAT5,CAT5e, UTP/FTP CAT6,CAT6e




FAQ

(1)Q: Are you a manufacturer or a trading company?
    A: We are a professional cable manufacturer with 27 years production experience.
(2)Q: Can you print our logo or company name in cable?
    A: Yes,we can print your logo or company name on products.
(3)Q:Can you accept customize or design for us?
    A: Yes, all communication cables are customized in our own factory and we can design for you according to your requirement.
(4)Q:Is it possible to get a free sample ?
    A: Yes, samples are free,and shipping cost have to be paid by your esteemed company. But we will return the sample cost to you when we receiving your initial order.
(5)Q:What is your MOQ ?
    A: Usually,our coaxial cable MOQ is 100 thousand meters.
(6)Q:If I want to purchase,how to pay?
    A: Usually, we do T/T in 30% deposit before production,70% balance against copy of B/L. Also payment terms are negotiable depending on customer's request.

Note:  Welcome to visit our factory and  get our samples.
           Your inquiry will be answered within 24 hours .
            If you are interest in any our products,please do not hesitate to contact us ,we will do our best for you.




Manner of Packing


undefined

Roll 1

undefined

Roll 2

undefined

Plastic Frame

undefined

Paper Reel Packing


undefined

Normal Pully Box

undefined

Pully Box



Application Scenarios


undefined

Outdoor Cable Television

undefined

Closed Circuit Television System

undefined

Satellite System



Company Introduction
undefined

  FOSHAN KEXUN CABLE INDUSTRIAL CO.,LTD

  FOSHAN NEW KING CABLE INDUSTRIAL CO.,LTD




After 30 years development and improvement, our company has been grown from a 10 person small factory to a more than 200 person groups which has two cable factories and two raw material factories. Foshan Kexun Cable and New King cable are the two production factories which can produce different types of cables and wires such as coaxial cable RG series, Lan Cable Cat5e, Cat6,both UTP and FTP series, camera cable/CCTV cable, RVV cable as electricity usage .
