UTP CAT5 / CAT6 Cable

Quantity:
Overview

Place of Origin :  Foshan , China                                                                                   Brand Name : KEXUN , NEW KING or OEM

Model Number : UTP CAT5/CAT6                                                                                 Certification : CE/RoHS,CPR

Type : Lan cable                                                                                                            Wire  Core Material: BC/CCA

Jacket: PVC/PE

Supply Ability

Supply Ability : 500 Million Meters per Year, 130 Million Meters per Day


Packaging & Delivery


  Packaging Details :Can be packed in clarity film, several rolls into one carton.

  Port :Foshan


Construction & Performance
Construction
Conductor 24AWG(Solid or Strand) CU/CCA/CCS
Insulation HDPE 0.90± 0.06mm
Cores/Pairs 4C*2
Sheath 5.20+/-0.1mm PVC (FR,RoHS,UV)/ LSOH / PE
Mechanical Properties
Elongation Min. 300%
Temperature Range -20 up to +75° C
Tensile strength Min. 1.68Kg/mm
Electrical Properties (at20°C)
Conductor Resistance Max. 9.38 ohm/100m
Resistance Unbalance Max. 2%
Insulation Resistance 150 ohm/KM
Mutual Capacitance Max. 5600pF/100m
Cpacitance Unbalance Max. 330pF/100m
Impendance 100+/-15 ohm
Spark Test 2000V
Velocity Propagation 67%
Electrical Properties

Attenuation RL Next PS Next
MHz (db/100m) (db) (db) (db/100m)
1MHz 2 20 65.3 65.5
4MHz 4.1 23 56.3 54.2
8MHz 5.8 24.5 52.4 50.5
10MHz 6.6 25 51.3 49.2
16MHz 8.2 25 49.3 47.4
20MHz 9.3 25 48.8 46.9
25MHz 10.4 24 45.3 43.4
31.25MHz 11.7 23 43 41.8
62.5MHz 17 21 39.2 37.2
100MHz 22 20 36.3 34.4
155MHz 28.1 19 35.5 33.6
200MHz 32.4 19 31.8 29.9
240MHz 36 18 30.6 28.7
300MHz 41 18 29.2 27
350MHz 44.9 17 28 25.6


Product shows

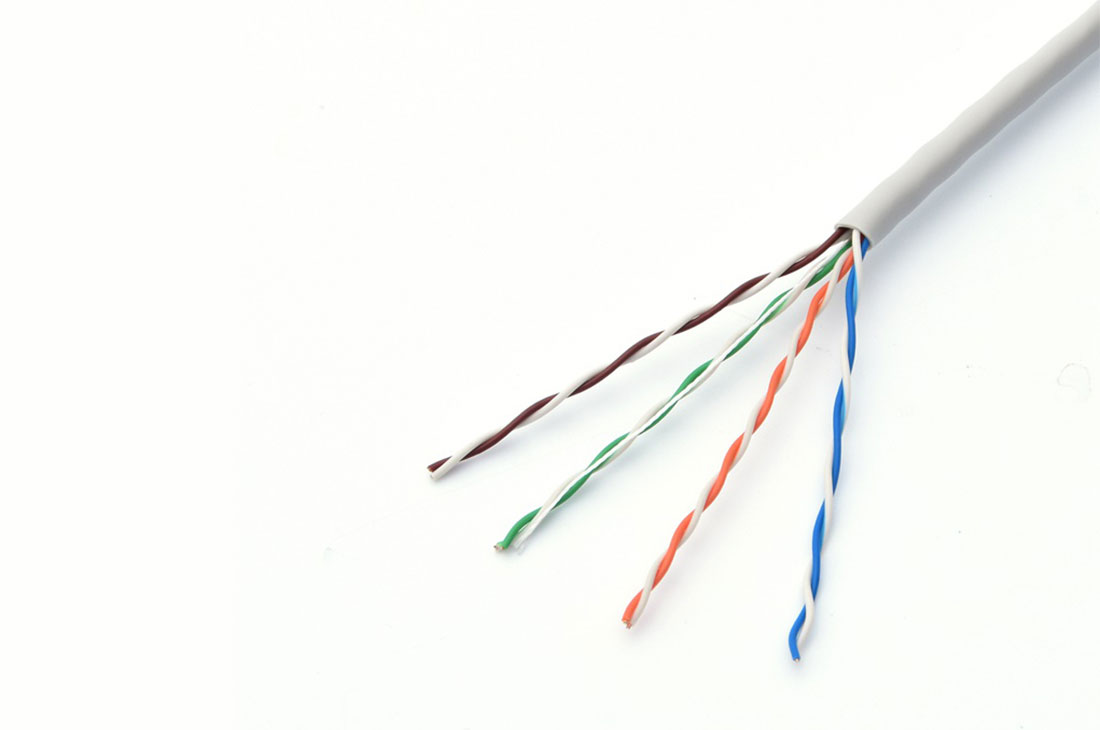

CAT5-01


CAT5-02


CAT5-03


Manner of Packing


13

Roll 1


16

Roll 2

18

Plastic Frame


19

Paper Reel Packing


21

Normal Pully Box


22

Pully Box



Application Scenarios


1

Mulit-line phone systems


2

Networks


3

Router


Company Introduction
详情007

  FOSHAN KEXUN CABLE INDUSTRIAL CO.,LTD

  FOSHAN NEW KING CABLE INDUSTRIAL CO.,LTD




After 30 years development and improvement, our company has been grown from a 10 person small factory to a more than 200 person groups which has two cable factories and two raw material factories. Foshan Kexun Cable and New King cable are the two production factories which can produce different types of cables and wires such as coaxial cable RG series, Lan Cable Cat5e, Cat6,both UTP and FTP series, camera cable/CCTV cable, RVV cable as electricity usage .




Factory Workshop
工厂-01

In the Factory


工厂-02

In the Factory


工厂-03

In the Factory

器械-01

Mechanical Equipment


器械-02

Mechanical Equipment


器械-03

Mechanical Equipment




Our Team
详情111

Excellent Management Team




With the benefit of 30 years production experience, we have got an excellent management team, experienced workers and a full set of mature production technologies for each procedures. For example, our average production waste has been stable below 0.9% yearly.

团队-01

The Company Meeting


团队-02

The Company Meeting


团队-03

The Work Environment




Honor




证书-01

ISO


证书-02

CE Certificate


证书-03

CE Foshan NK


证书-04

CE-Coaxial Cable-EMC




证书-05

NK CPR CABLE ISO 9001


证书-06

ROHS Certificate


证书-07

ROHS Foshan NK


证书-08

CPR




Exhibition


Dubai Exhibition, March 2019


展会-01

Talking to customers


展会-02

Business Negotiations


展会-03

Business Negotiations




Dubai Exhibition, March 2019




展会-04

October 2019 Canton Fair


展会-05

Photo with Customer


展会-06

Business Negotiations
