RG59+2DC Coaxial Cable

Quantity:
  • RG59+2DC
  • KEXUN , NEW KING or OEM
Overview

Place of Origin :  Foshan, China                                                                                   Brand Name : KEXUN, NEW KING OR OEM

Model Number : RG59+2DC                                                                                          Number of Conductors : 1

Type : Coaxial                                                                                                                Model : RG59+2DC Camera Cable

Certification : CE/RoHS                                                                                                 Inner Conductor : 0.81+/-0.02 Bare Copper / CCS

Dielectric : 3.80- 3.90mm FPE                                                                                       Braid CoverageAl Foil +70%, 90%, 95% Braid

Braid Material : Al-Mg, CCA, BC, TC                                                                            Out Jacket :  PVC/PE

Color : White, Black or Customized                                                                               Diameter(mm):6.10+4.50

Power Cable Conductor(mm):15*0.23CCA or 7*0.37CCA

Power Cable Insulation(mm):1.70PE

Supply Ability

Our factory has supper cable Equipments to improve ability.

Our Supply Ability is 500 Million Meters per Year, that is 130 Million Meters per Day.


Packaging & Delivery


  Packaging Details :Our coaxial cable can be packed in clarity film, several rolls into one carton, or be packed as your demand.

  Port :Foshan, Shenzhen, Guangzhou


Construction & Performance
Construction Conductor Material Copper Clad Steel
Diameter(mm) 0.81±0.02
Insulation Material Foaming PE
Diameter(mm) 3.66±0.10
Outer Shield Material AL foil+AL/mg wire braiding
Density 61%
Diameter(mm) 6.10+4.50
Power Cable Conductor(mm) 15*0.23CCA or 7*0.37CCA
Insulation(mm) 1.70PE
Performance Minimum Bending Radius mm 34(indoor)
Minimum Bending Temperature -10
Storage Temperature -10~+75
Installation Temperature -10~+50
Operating Temperature -10~+75
Electrical Properties
Capacitance pF/m 53
Velocity % 86
Insulation Resistance MΩ·km >5000
Cut-off Frequency GHz 3.0
Insulation withstand Voltage KV 1.0
Jacket Spark Voltage KV 2.0
Attenuation (dB/100m) 50MHz ≤9.0
100MHz ≤10.8
200MHz ≤11.8
800MHz ≤19.00
1000MHz ≤20.0
Shielding Effectiveness (dB) 55MHz ≥55
300MHz ≥60
1000MHz ≥65
Return Loss (dB) 5~470MHz ≥20
470~862MHz ≥20
862~2200MHz ≥18


Product shows

RG59+2DC Coaxial Cable


Manner of Packing

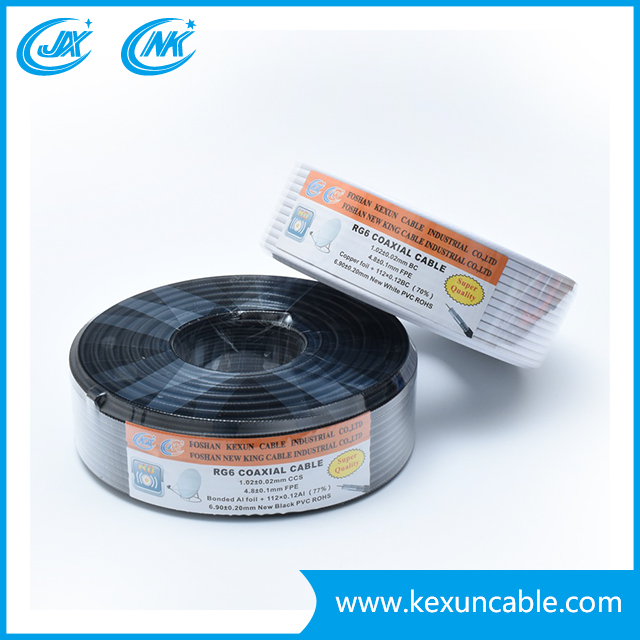

Coaxial cable roll

Roll 1


RG6+2F coaxial cable roll

Roll 2

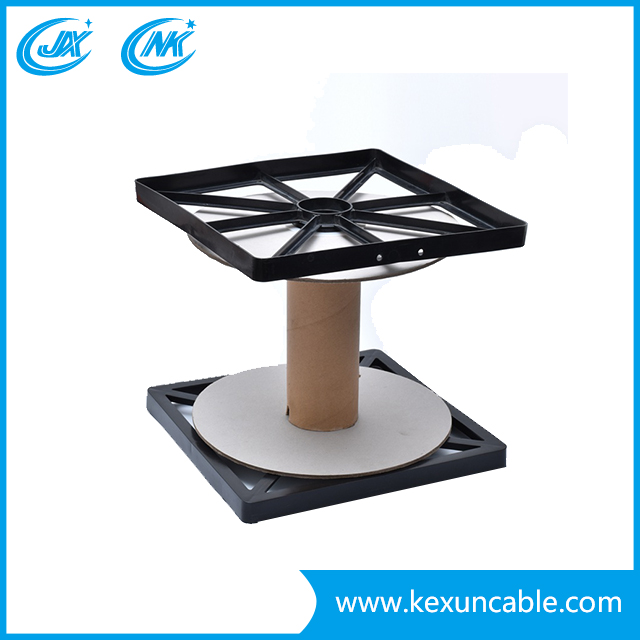

RG59+2DC coaxial cable Plastic frame

Plastic Frame

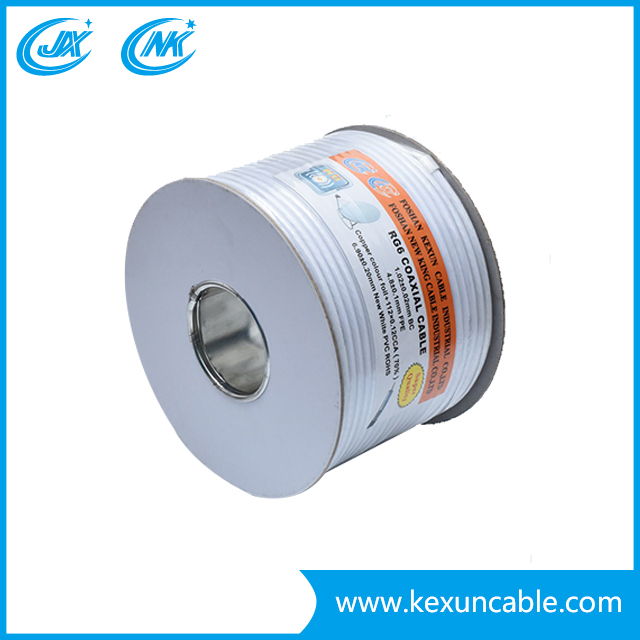

RG59+2DC coaxial cable Paper reel packing

Paper Reel Packing

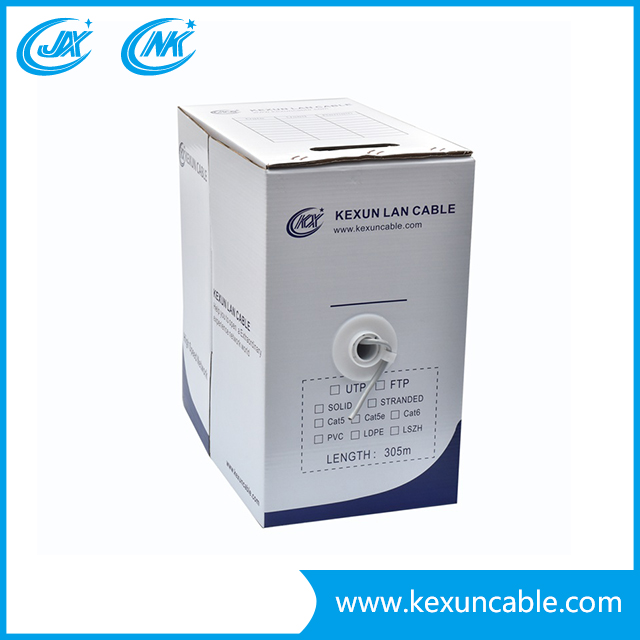

RG59+2DC coaxial cable normal pully box

Normal Pully Box


RG59+2DC coaxial cable normal pully box

Pully Box



Application Scenarios


Outdoor-Cable-Television

Outdoor Cable Television


CCTV-2

Closed Circuit Television System


09

Cable TV
